Difficulty pairing your Yealink handset to the base?

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

Instructions on how to pair your Yealink handset to the base.

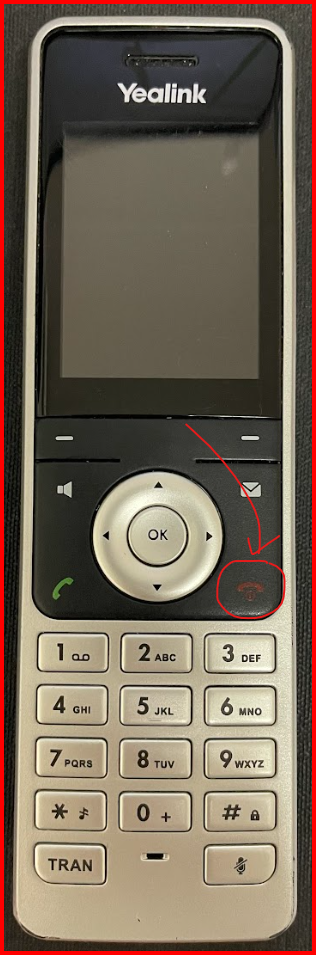

Firstly, hold and press the red hangup/power button to turn the handset off. Then press it again to turn it on.

786b00bd7bc050fa90c981dcd7f4b6644ce489fd309b3f7748fabed7cd72dc78de6e1e371fe20a06?t=032789ebab49075ba2441cb18d5e5451

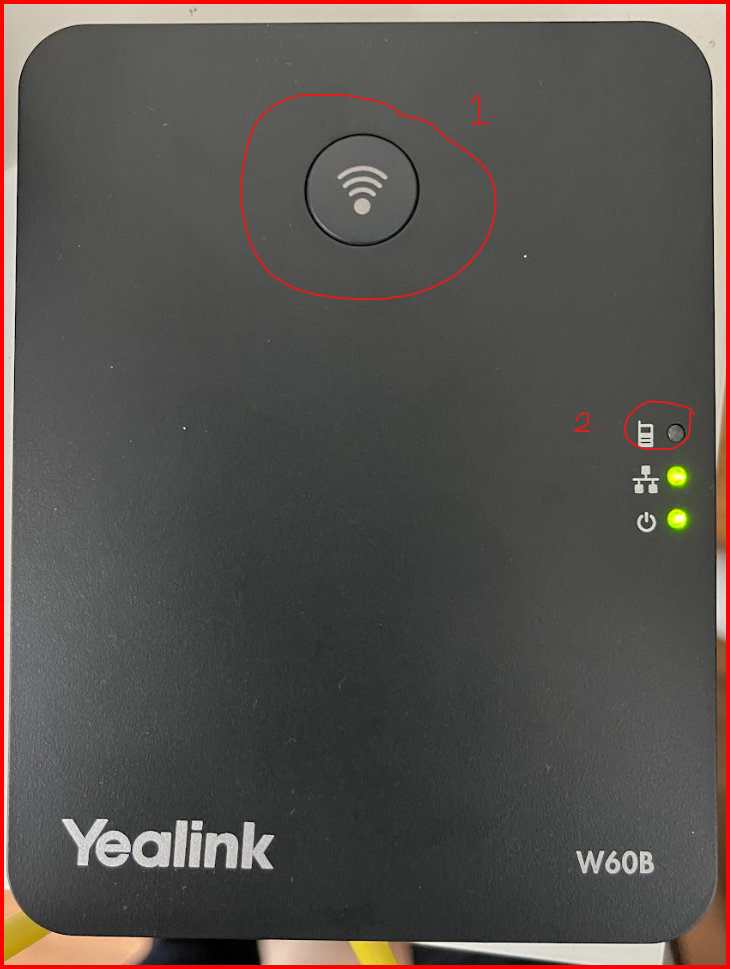

Then press and hold the WiFi button (labelled 1 in the picture below) on the base until the handset LED (labelled 2 in the picture below) starts to flash, this will activate the base discovery mode:

eb6f4c80f59acce673c39f316947b029a1fa0bf85612bb4e81965190044e7967d73e63123d9ebac8?t=132571b79a2bf39d2e14fe46c64d4fd5

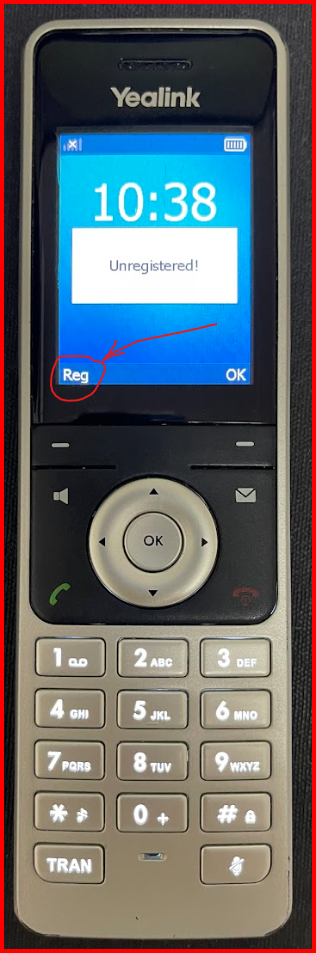

Then press the Reg softkey on the handset. Wait for the handset to detect the base. Once it has detected the base it will display a MAC address (e.g. 00-C0-33-E4-90-79), click OK on the softkey and then it will ask you for the passcode. Enter 0000.

e35811c6f8e35a960f474d73303ae5574bce6bb30b1b4daea70e01db0a46d4bc685bf57b430ba1e2?t=1a9cdd582811608a0748855cac805888



The handset is now paired to the base.
